HR 200

HOW IT WORKS

The DiveAlertPLUS uses chrome-plated brass couplings to attach to your power inflator. Squeezing the device engages the actuator valve stem causing a small amount of air to flutter a stainless steel diaphragm, emitting a piercingly loud sound from the injection-molded thermoplastic body. The subsurface / underwater signal is produced by a percussion "buzzing" noise made by a piston hitting a stainless steel diaphragm much like a drum.

Specifications

Body and Internal Elements: Injection-molded Thermoplastic
Diaphragms: Stainless Steel
Couplings: Chrome-plated Brass

DiveAlert Plus logo

A DUAL FUNCTION SURFACE / SUBSURFACE SIGNALING DEVICE

DiveAlertPLUS is a specially designed, small, light weight pneumatic signaling device that uses quick-connect/disconnect hose couplings to become an integrated part of your power inflator. Installation is easy and takes only a moment.

DiveAlertPLUS uses a small amount of air from your SCUBA tank to make a piercingly loud sound in air or water. People have been able to hear a DiveAlertPLUS one mile away from a diver in need above water. In conditions where visibility is limited, a DiveAlertPLUS can be a life saver. Underwater you can sound for attention quickly with a squeeze of the device.

dive alert plus

NO MODS REQUIRED

DiveAlertPLUS does not require any modification to your equipment, and it does not interfere with the normal operation of your equipment. The DiveAlertPLUS comes in three different models to accommodate different connectors: DV1, DV2, and DV3.

EASY TO USE DESIGN

Once the tank is turned on and the DiveAlertPLUS connected, squeeze the DiveAlertPLUS softly underwater for a subsurface signal. Or squeeze it firmly on the surface for a loud surface signal blast. Check that the DiveAlertPLUS is installed correctly and functioning properly before every dive. Also be careful not to point the DiveAlertPLUS toward yourself or toward anyone who is in close proximity to you when you activate the surface signal (it’s really loud!).

One-Year Limited Warranty

Ideations design, Inc., warrants the DiveAlertPLUS to be free from defects in materials and workmanship for one year from the date of purchase from an authorized DiveAlertPLUS dealer. If any functional defects appear in a DiveAlertPLUS unit within the one-year warranty period, the unit will be either repaired or replaced at the option of Ideations design, Inc.

MAINTENANCE

After each use, the DiveAlert PLUS should be soaked with warm fresh water. This is especially important after use in chlorinated swimming pools and in other water having corrosive substances. Additionally, it is highly recommended that you blow the water out of the DiveAlert PLUS before storing. This can be done by pressurizing and activating both the surface and subsurface signaling elements. (We recommend that you cup your hand over the surface signaling element to muffle the loud noise.)

Owners Manual

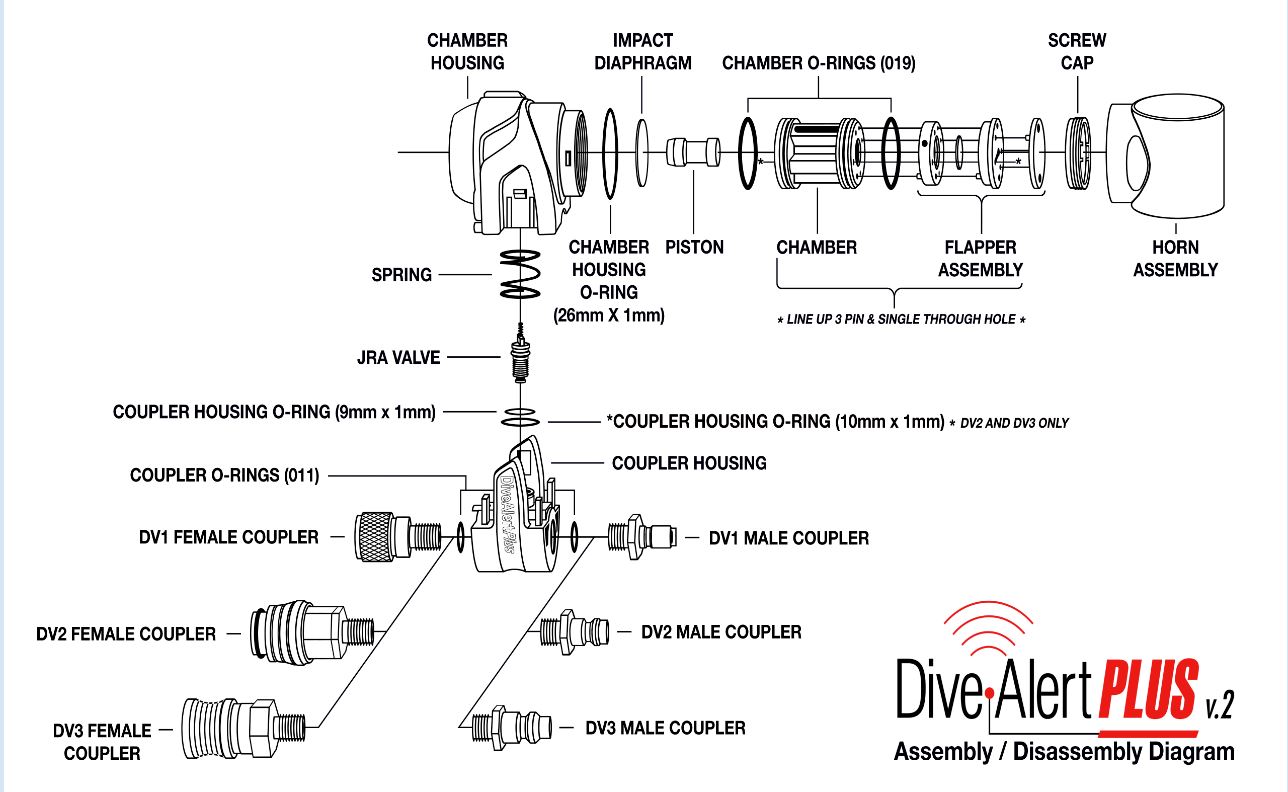

Exploded Diagram (current version)
Exploded Diagram (discontinued version)

Videos

What to do if your DiveAlert is just blowing air (no sound)

DIVEALERT PLUS V.2 FUNCTION VIDEOS:
DiveAlert PLUS v.2 function
DiveAlert PLUS v. 2 clearing water out of unit for surface signaling

DIVEALERT PLUS V.2 DISASSEMBLY/ASSEMBLY VIDEOS
DiveAlert PLUS v.2 teardown (old style piston)
DiveAlert PLUS v.2 teardown (new, and most recent style piston)
DiveAlert PLUS v.2 time lapse assembly
